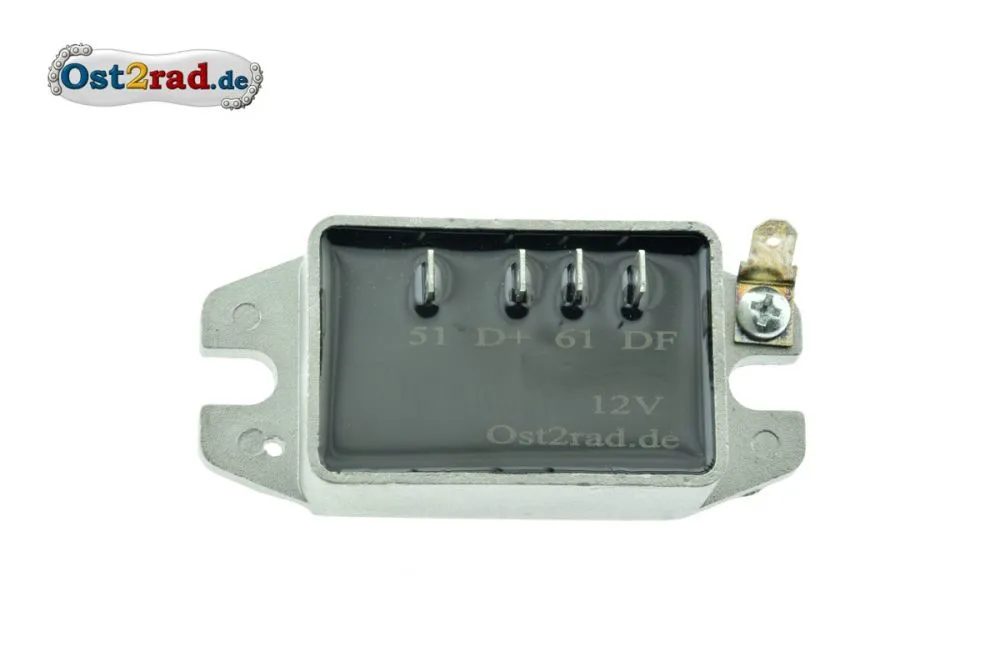

Regulator, Loading regulator 12V for MZ TS, ETZ
Tension regulator for motorcycle and passenger car. Especially for our MZ - types with 12 V of arrangement, also for Trabant and Wartburg. Suitable for TS250/1, ETZ125, ETZ150, ETZ250, ETZ251 with unterbreaker ignition (not for electronic ignitions) and universally usable for generators with mass on the frame for battery load.
This loading regulator is from aluminium pressure downpour, the electronics was poured in with synthetic resin. Thereby mechanically hardly destroyable and absolutely waterproof.
Extremely massive implementation! This regulator substitutes for the tension regulator with plastic case.
Size of the electronics stone approx.: Width 60 mm, depth 40 mm, height 22 mm.
Tip: Their old generator must be fully functioning, because all electronic regulators react more sensitively than conventionally regulator with relay.
Technical data: Control stream 12 V, stream of switching off the load 14.5 V, for arrangements to approx. 180 watts of whole achievement.
Connections: Mass, battery +, 2x ignition, loading control
All parts are checked before the delivery by us on effectiveness. A connection plan with installation instructions is enclosed for MZ.
This loading regulator is from aluminium pressure downpour, the electronics was poured in with synthetic resin. Thereby mechanically hardly destroyable and absolutely waterproof.
Extremely massive implementation! This regulator substitutes for the tension regulator with plastic case.
Size of the electronics stone approx.: Width 60 mm, depth 40 mm, height 22 mm.
Tip: Their old generator must be fully functioning, because all electronic regulators react more sensitively than conventionally regulator with relay.
Technical data: Control stream 12 V, stream of switching off the load 14.5 V, for arrangements to approx. 180 watts of whole achievement.
Connections: Mass, battery +, 2x ignition, loading control
All parts are checked before the delivery by us on effectiveness. A connection plan with installation instructions is enclosed for MZ.
